PTFE Braided Packings

Hindustan Nylons - A leading manufacturers of PTFE-Braided-Packing for sealing purpose
such as PTFE Braided Packing Impregnated with PTFE Dispersion with / without silicon core in verity of sizes also PTFE braided packing - Dry, PTFE braided packing impetrated with PTFE description and Expanded PTFE Joint sealant Tape with adhesive booking in verity of sizes.

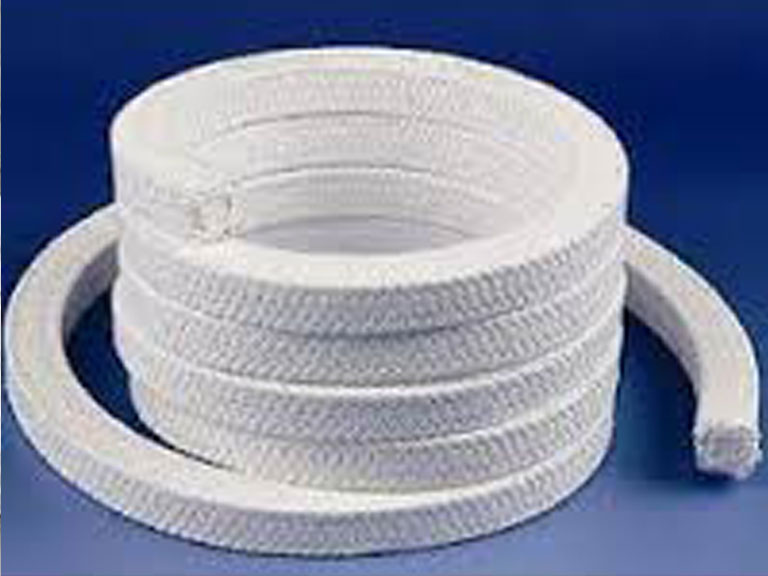

PTFE Braided Packing Impregnated with PTFE Dispersion

Hindustan Nylons - PTFE Braided Packing Impregnated with PTFE Dispersion

Style No: HN-333
Ideal For: Universal packing for Medical, Juices, Pharmaceutical, Liquor & Alcohol, Food Stuff Application (FDA component)

Properties:
  • Good chemical resistance, inert to most media
  • Good Dimensional Stability
  • Soft & Resilient
  • High Density
  • Self Lubrication / Low coefficient of friction
  • Suitable to food contact application
  • High Temperature Resistance
  • Excellent volume stability
  • Suitable to Medical / Pharmaceutical Applications
  • Low Permeability

Service Conditions:
Temp (°C): -200~260
Pressure (kg/cm²): 50P, 150R, 250V
PH Range: 0-14
Speed (M/s): 5P, 1R

Not Recommended For: Fluorine, Fluorine complexes & Alkali Metals

Service Medium:
  • Drinking Water
  • Liquor & Alcohol
  • Juice
  • Pharmaceauticals
  • Food Stuff
  • Medical

Forms: Square section, Ring & Rope form
Sizes Available: 3~25mm
Packing Size: 1~10 kg depending upon size

P=Pump, R=Reciprocating, V=Valves
