Hindustan Nylons manufacturers PTFE Non-asbestos pickings for sealing purpose such as PTFE braided packing - Dry, PTFE braided packing impetrated with PTFE description and Expanded PTFE Joint sealant Tape with adhesive booking in verity of sizes.

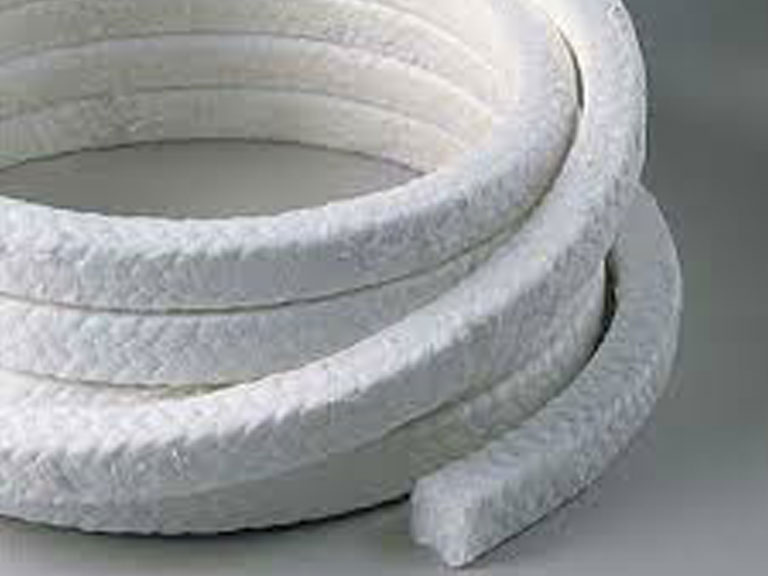

Style No: HN-222
Ideal For: Low cost, Universal packing for Water, Gas, Mild Chemicals
Service Conditions:
Temp (°C): -200~260
Pressure (kg/cm²): 20P, 100R, 250V
PH Range: 0-14
Speed (M/s): 10P, 1R
Not Recommended For: Fluorine, Fluorine complexes & Alkali Metals
Forms: Square Section, Ring & Rope form
Sizes Available: 3mm ~ 25mm
Packing Size: 1kg ~ 10kg depending upon size

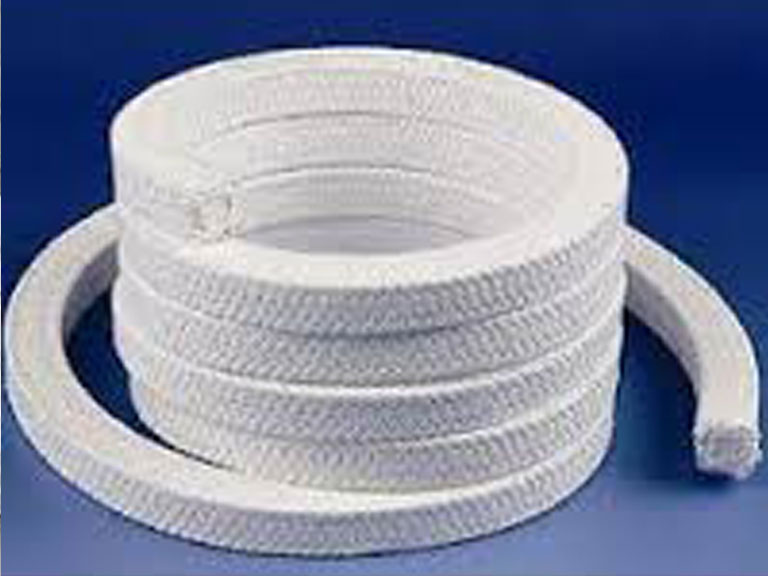

Style No: HN-333
Ideal For: Universal packing for Medical, Juices, Pharmaceutical, Liquor & Alcohol, Food Stuff Application (FDA component)
Service Conditions:
Temp (°C): -200~260
Pressure (kg/cm²): 50P, 150R, 250V
PH Range: 0-14
Speed (M/s): 5P, 1R
Not Recommended For: Fluorine, Fluorine complexes & Alkali Metals
Forms: Square section, Ring & Rope form
Sizes Available: 3~25mm
Packing Size: 1~10 kg depending upon size

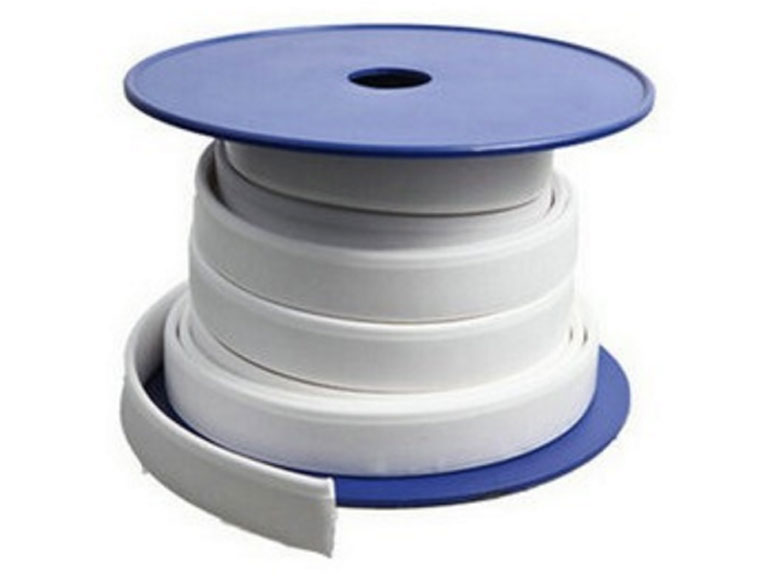

Style No: HN-1011
Ideal For: Static Seal as Gasket
Service Conditions:
Temp (°C): -240 to +260
Pressure (kg/cm²): 200
PH Range: 0~14
Not Recommended For: Fluorine complexes & Alkali Metals
Service Medium:
Forms: Rectangular Rope
Sizes Available / Standard Size
| Width (mm) | Thickness (mm) | Length (mtrs) |
| 5 | 2 | 30 |
| 5 | 3 | 30 |
| 7 | 2.5 | 30 |
| 10 | 3 | 20 |
| 12 | 4 | 10 |
| 14 | 3 | 10 |
| 14 | 5 | 10 |
| 17 | 6 | 10 |
| 19 | 5 | 5 |
| 20 | 3 | 5 |
| 20 | 5 | 5 |
| 20 | 7 | 5 |
| 25 | 1 | 10 |
| 25 | 5 | 5 |
| 25 | 7 | 5 |
| 25 | 10 | 5 |
| 30 | 3 | 5 |
| 30 | 5 | 5 |
| 40 | 3 | 5 |
| 40 | 5 | 5 |
| 45 | 3 | 5 |
| 50 | 3 | 5 |
| 55 | 3 | 5 |
| 70 | 3 | 5 |
